Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type

Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Confirms to BIS
IS 15683:2018
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Sheet Thickness
1.8 mm
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Maximum Fire Rating
6A:233B
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Safe Technology
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
CE Approved Valve
Brass
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
EPDM Hose
Crack Resistant
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
UL Approved MAP Powder
Min. 90%
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
PP Internal & External Coating
Anti-Corrosive Treatment

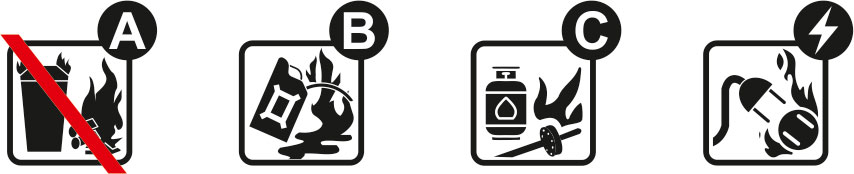

Suitable Classess of Fire :
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Certifications :
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Capacity :
Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type       Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type       Portable Dry Powder Fire Extinguisher - BC Cartridge Pressure Type
Features :
  • CO₂ gas cartridge confirms to IS:4947
  • Easy to operate and refill
  • Economical to maintain
  • Dependable drawn cylinders with hydrostatic test as per standard
  • UV resistant coating
  • Controllable discharge mechanism with maximum retention of charge capacity
  • Wide operating temperature range from -30° C to +60° C
Model Codes & Technical Specifications
Capacity Model Agent Gross Weight (kg) Cartridge Working Pressure (Bar) Fire Rating Discharge Time (sec) Bulk Range (mtr)
4 kg VFCPQ-04-S SBC 7.8 120 gm 15 144B 18 3
VFCPQ-04-P PBC 144B 18 3
6 kg VFCPQ-06-S SBC 11.1 120 gm 15 183B 24 5
VFCPQ-06-P PBC 183B 24 5
9 kg VFCPQ-09-S SBC 15.9 200 gm 15 233B 31 6
VFCPQ-09-P PBC 233B 31 6
