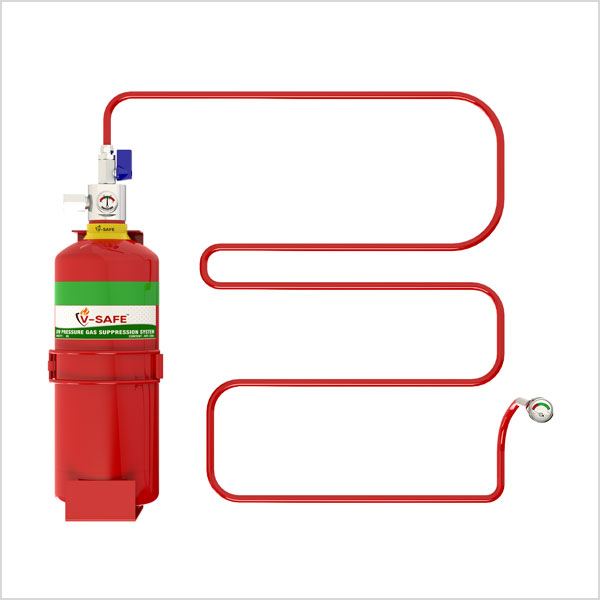

Tubing Gas Suppression System - Low / High Pressure - Direct Tubing System

Tubing Gas Suppression System - Low / High Pressure

The flexible sensor tubing is easily installed inside the electrical cabinet - directly above the wires and circuit where a fire could start. The pressurized heat sensing tube is punctured at the hottest spot of the flame in case of fire. This sudden tube depressurization actuates the specially designed valve thereby releasing the agent with flooding effect through the point where tube was punctured because of the flame.

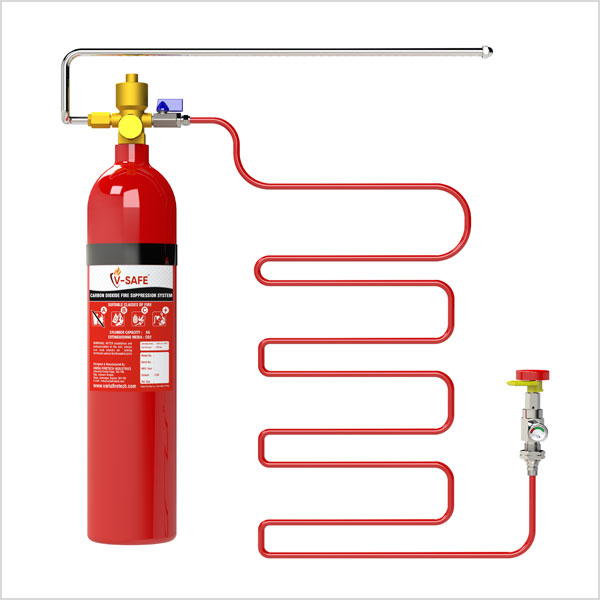

Tubing Gas Suppression System - Low / High Pressure - Indirect Tubing System

Tubing Gas Suppression System - Low / High Pressure

For In-direct system the heat sensing and tube acts as a sensing device and agent is discharged via specially designed nozzles. The pressurized heat sensing tube is punctured at the hottest spot of the flame in case of fire. This sudden tube depressurization actuates the specially designed valve thereby releasing the agent through the specially types of nozzles connected to the bottle via SS pipe.

Suitable Classess of Fire :
Tubing Gas Suppression System - Low / High Pressure
Certifications :
Tubing Gas Suppression System - Low / High Pressure
Features :
  • Cylinder available in multiple capacity depending upon application in the range of 2, 4, 6 and 9 kg for low pressure system & 4.5, 6, 9 and 22.5 kg for high pressure system
  • The fire is quickly suppresses just moments after it begins thereby minimizing damage and downtime.
  • The flexible sensor tubing is easily installed inside the electrical cabinet, directly above the wires and circuit where a fire could start. When in service, the tubing is pressurized with dry nitrogen to 16 bar.
  • The extinguishing agent is UL approved, environment friendly, equipment friendly and demonstrates automatic immediate actuation during early fire.
  • Application Area: Electrical cabinets, IT servers, CNC machines, vehicles, fume cabinets, battery operated vehicles, cranes, turbines and many such applications.
  • The system can be coupled with heat sensing tube with actuation temperature of 110°C. The tube is available with all the accessories like manual actuation, end of line adapter, different connectors .
