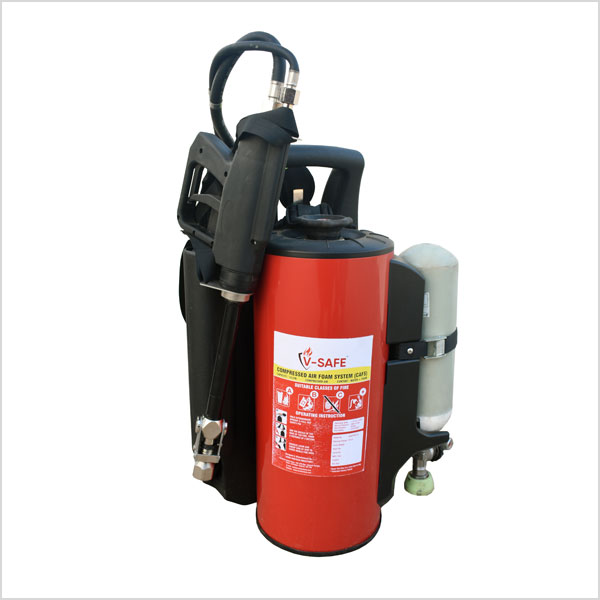

Portable Compressed Air Foam System - Low Pressure

Portable Compressed Air Foam System - Low Pressure

V-Safe designed low pressure compressed air foam system (CAFs) is a pre-charged extinguishing equipment featured with specially designed nozzle that is capable of delivering water droplets in the range of microns. The reduced size of water droplets help in extinguishing fire in multiple ways: Cooling effect by evaporation; suffocation of fuel and oxygen thereby separating reaction partners; Deep penetration inside the flammable material. System is designed for less water consumption so as to reduce impact on environment.

Suitable Classess of Fire :
Portable Compressed Air Foam System - Low Pressure
Certifications :
Portable Compressed Air Foam System - Low Pressure
Capacity :
Portable Compressed Air Foam System - Low Pressure       Portable Compressed Air Foam System - Low Pressure
Features :
  • Stainless steel body
  • Compact and light weight design for easy handling & operation
  • Highest fire rating in class
  • Factory tested for high electrical conductivity test
  • PESO Approved Breathing air bottle options available in MS and composite
  • Higher efficiency than ordinary mist system
  • Special nozzle: Facilitates foam release in both forms - Jet and Fog
Model Codes & Technical Specifications
Capacity Model Agent Propellant Gross Weight (kg) Working Pressure Hose Length Fire Rating Operating Time Max. Discharge Range
9 ltr VCAFSPQ-9 AFFF 2I/300 BAR Compressed Air 23 Upto 15 BAR 2 m 55A:233B* 50 Sec (Wet)/110 Sec(Dry) 12 m (Wet)/8 m (Dry)
10 ltr VCAFSPQ-10 AFFF 2I/300 BAR Compressed Air 24 Upto 15 BAR 2 m 55A:233B* 55 Sec (Wet)/115 Sec(Dry) 12 m (Wet)/8 m (Dry)
* Certified from NABL accredited lab
